An Analysis of a Lua Obfuscation and its Deobfuscation
Headings
Note: This is not a tutorial for obfuscation nor deobfuscation. This post is for educational purposes only.
Recently, before I serve for the military to fullfill my duty as a Korean 🇰🇷, I have some time to play around Lua obfuscation and its deobfuscation. I found a Lua obfuscation that is quite interesting and decided to analyze it. In this post, I will explain the obfuscation and its deobfuscation.
This is not a general deobfuscation that can be applied for everywhere. It is a Lua obfuscation that is used in a specific Lua script. The obfuscation is not strong, but it is enough to make the script unreadable.
Introduction
Lua Language
According to Lua’s about page, Lua is described as follows:
Lua is a powerful, efficient, lightweight, embeddable scripting language. It supports procedural programming, object-oriented programming, functional programming, data-driven programming, and data description. 1
As you can see, Lua is a powerful language that can be used in various fields. It is widely used in game development or game plugins. For instance, Roblox uses Lua as its scripting language.
However, Lua is not a perfect language. It has some weaknesses. One of the problems is that Lua is easy to interpret. This means that Lua scripts can be accessed and read the original source code easily.
To prevent this, some developers obfuscate their Lua scripts. In this post, I will analyze obfuscated Lua script and deobfuscate it.
Analysis
First, we need to gain the obfuscated Lua script. I will not provide the method how to intercept the script since this post is about the analysis and deobfuscation.
@JoelNoguera has written a great article about how to intercept lua scripts. You can find the article here.
@ColtonSkees has also written a great article that explains how to intercept lua scripts. Here.
After gaining the obfuscated Lua script, we can start the analysis.
Obfuscated Lua Script
This is one of the obfuscated Lua scripts that I have gained.
1
2
3
4
5
6
return function(self, player)
return _G
["\u{5F}\u{006C}\u{0049}\u{0069}\u{0049}\u{049}\u{49}\u{049}\u{49}\u{049}\u{0069}\u{69}\u{006C}\u{69}\u{6C}\u{69}\u{06C}\u{49}\u{69}\u{069}\u{006C}\u{49}\u{6C}\u{6C}\u{6C}\u{49}\u{049}\u{49}\u{0049}\u{06C}\u{69}\u{69}\u{49}\u{006C}\u{006C}"]
["\u{69}\u{0069}\u{0049}\u{69}\u{6C}\u{49}\u{69}\u{6C}\u{6C}\u{049}\u{049}\u{049}\u{69}\u{006C}\u{0069}\u{6C}\u{6C}\u{006C}\u{6C}\u{6C}\u{6C}\u{49}\u{6C}\u{6C}\u{069}\u{49}\u{6C}\u{49}\u{49}\u{49}\u{049}\u{69}\u{49}\u{49}"]
[(115026039) - (209161548) + (94135520)](self, player)
end
I have changed the original script to prevent the script from being abused.
In the first glance, you can see that the script is obfuscated. Now, let’s analyze the script.
Let’s see what we can observe from the script.
- The script returns a function.
- The function takes two arguments,
selfandplayer. - The function returns
_Gobject. - The function accesses a table with a key that is obfuscated.
- The function calls the accessed table with arguments
selfandplayer. - The key is obfuscated with Unicode characters.
- The key is obfuscated with a simple calculation.
Restoring Basic Obfuscation
Now, we know that they are accessing a table with a key that is obfuscated. We can restore some parts. For instance, we can restore the key that is obfuscated with Unicode characters and a simple calculation.
I wrote a simple python script.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
import re
def convert_lua_unicode_to_python(match):
"""Convert a Lua Unicode escape sequence to a Python-compatible Unicode character."""
lua_sequence = match.group(0)
# Extract the hexadecimal part of the Lua Unicode sequence.
hex_sequence = lua_sequence[3:-1]
# Convert the hexadecimal to an integer, then to a character.
char = chr(int(hex_sequence, 16))
return char
def evaluate_expression(match):
"""Evaluate the arithmetic expression found within parentheses."""
numbers = [int(match.group(i)) for i in range(1, 6, 2)]
operators = [match.group(i) for i in range(2, 6, 2)]
try:
result = eval(f"{numbers[0]} {operators[0]} {numbers[1]} {operators[1]} {numbers[2]}")
return f"{result}"
except Exception as e:
print(f"Error evaluating expression '{match.group(0)}': {e}")
return match.group(0) # Return the original text if there's any error.
def process_lua_content(content):
"""Process the Lua content, simplifying expressions within brackets and decoding Unicode sequences."""
# Simplify arithmetic expressions within square brackets.
content = re.sub(r"\((\d+)\)\s*([+-])\s*\((\d+)\)\s*([+-])\s*\((\d+)\)", evaluate_expression, content)
# Convert Lua Unicode escape sequences to actual characters.
content = re.sub(r'\\u\{\w+\}', convert_lua_unicode_to_python, content)
return content
The idea is simple.
We convert the Lua Unicode escape sequences to actual characters and evaluate the arithmetic expressions within parentheses.
Let’s see the result.
1
2
3
return function (self,player)
return _G["_lIiIIIIIIiilililIiilIlllIIIIliiIll"]["iiIilIillIIIilillllllIlliIlIIIIiII"][11](self,player)
end
Now, we can see more clearly. The key is restored.
The function returns a function that accesses a table with a key _lIiIIIIIIiilililIiilIlllIIIIliiIll and calls the accessed table with arguments self and player.
Investigating the Table
So, with this information, we can think since it looks like a table so we can guess that the table is a function.
Let’s print what is in the table.
1
2
3
4
5
6
7
local table = _G["_lIiIIIIIIiilililIiilIlllIIIIliiIll"]
-- loop table
for i = 1, #table do
local str = table[i]
-- print the value of the table
print(string.format('\'table[%d]\': %s', i, str))
end
Unfortunately, _G["_lIiIIIIIIiilililIiilIlllIIIIliiIll"] is not a table. It is a some kind of a game script.
When we execute the script, we get an error.
1
Error executing script: [string "..."]:4: attempt to get length of a script.lIiIIIIIIiilililIiilIlllIIIIliiIll value (local 'table')
What next? Are we doomed?
No, we can still analyze the script.
Without mapping _G["_lIiIIIIIIiilililIiilIlllIIIIliiIll"]["iiIilIillIIIilillllllIlliIlIIIIiII"], the creator of the script cannot execute the script. Thus, they must have a way to map the key. As I said before, the weakness of Lua is that it is easy to interpret which means we can find the mapping function, too.
Chunks
We need to know where do they actually map the functions.
Fourtunately, I have found them.
There are scripts called chunk which load up the internal scripts.
1
2
3
return function ()
return {[(1665832418)+(1405556753)-(3071389170)]="\u{005F}\u{0049}\u{74}\u{65}\u{006D}\u{073}",[(1800706488)+(1255182846)-(3055889332)]="\u{05F}\u{0049}\u{74}\u{65}\u{06D}\u{049}\u{006E}\u{66}\u{6F}\u{004D}\u{61}\u{6E}",[(345577436)+(543558389)-(889135822)]="\u{4C}\u{6F}\u{0063}\u{61}\u{6C}\u{50}\u{6C}\u{61}\u{0079}\u{65}\u{72}",[(1284327815)+(1155995015)-(2440322826)]="\u{57}\u{73}\u{55}\u{73}\u{65}\u{072}",[(1100047201)+(1811504072)-(2911551268)]="\u{043}\u{0068}\u{61}\u{0072}\u{61}\u{63}\u{74}\u{065}\u{72}\u{4E}\u{61}\u{06D}\u{065}",[(468472164)+(63565638)-(532037796)]="\u{0053}\u{65}\u{6E}\u{64}\u{065}\u{72}"}
end
This is a partial script of the chunk. As you can see, the chunk returns a table that maps the keys to the actual keys.
1
2
3
return function ()
return {[1]="_Items",[2]="_ItemInfoMan",[3]="LocalPlayer",[4]="WsUser",[5]="CharacterName"}
end
This is the partial script of the chunk.
I have deobfuscated the chunk script and found that the chunk script returns a table that maps the keys to the actual keys.
1
2
3
return function ()
return {[(1136777751)+(1826562872)-(2963340622)]=function(__a0,__a1)local ukKKkuuKik=1908073259;ukKKkuuKik-=704505391;return (function(_oi0l1loioIil,_1Iiolo1I10II)return _1Iiolo1I10II//((954879017)+(2041865192)-(2996734209))==((538823857)+(1286045873)-(1824869621))end)(__a0,__a1);end,[(819006130)+(1980087701)-(2799093829)]=function(__a0,__a1)local lKKluikuuk=1033172464;lKKluikuuk|=634838668;return (function(_o01ilio0oI0i,_l10IiIl1lo11)return _o01ilio0oI0i[_G["\u{5F}\u{49}\u{69}\u{0049}\u{6C}\u{6C}\u{049}\u{69}\u{069}\u{049}\u{006C}\u{6C}\u{049}\u{0069}\u{0069}\u{6C}\u{6C}\u{6C}\u{69}\u{006C}\u{6C}\u{0049}\u{49}\u{69}\u{69}\u{0049}\u{49}\u{049}\u{69}\u{049}\u{0049}\u{69}\u{69}\u{69}\u{06C}\u{06C}\u{69}"]["\u{49}\u{49}\u{49}\u{49}\u{49}\u{06C}\u{006C}\u{06C}\u{069}\u{049}\u{49}\u{69}\u{0069}\u{0049}\u{49}\u{6C}\u{49}\u{6C}\u{6C}\u{06C}\u{0049}\u{049}\u{006C}\u{6C}\u{6C}\u{6C}\u{0069}\u{069}\u{6C}\u{0069}\u{69}\u{6C}"][(1820878688)+(1158726238)-(2979604921)]](_o01ilio0oI0i,_l10IiIl1lo11)~=((1952027413)+(541241365)-(2493268778))end)(__a0,__a1);end,[(1707645256)+(1096890748)-(2804536001)]=function(__a0,__a1)local KKKiKiiukk=2091496321;KKKiKiiukk|=473455857;(function(_10olil101I0l,_lIoi0ilIl1II)_G[_G["\u{5F}\u{49}\u{6C}\u{49}\u{69}\u{49}\u{069}\u{49}\u{0069}\u{69}\u{49}\u{6C}\u{0049}\u{69}\u{49}\u{49}\u{69}\u{6C}\u{49}\u{006C}\u{069}\u{49}\u{0069}\u{6C}\u{006C}\u{69}\u{69}\u{6C}\u{69}\u{69}\u{6C}\u{6C}\u{69}\u{6C}"]["\u{69}\u{69}\u{49}\u{49}\u{06C}\u{049}\u{49}\u{0049}\u{49}\u{06C}\u{49}\u{006C}\u{49}\u{69}\u{6C}\u{49}\u{6C}\u{6C}\u{049}\u{0069}\u{6C}\u{6C}\u{049}\u{6C}\u{0049}\u{49}\u{49}\u{0049}\u{6C}\u{49}\u{69}\u{69}\u{49}\u{49}"][(1434706998)+(1078627690)-(2513334679)]][_G["\u{005F}\u{006C}\u{006C}\u{69}\u{0069}\u{06C}\u{69}\u{069}\u{6C}\u{6C}\u{0069}\u{6C}\u{69}\u{49}\u{0049}\u{6C}\u{49}\u{06C}\u{49}\u{49}\u{49}\u{06C}\u{0049}\u{49}\u{006C}\u{0069}\u{069}\u{049}\u{0069}\u{49}\u{69}\u{69}\u{6C}\u{49}\u{006C}\u{49}\u{069}"]["\u{0069}\u{6C}\u{06C}\u{6C}\u{06C}\u{69}\u{0049}\u{0069}\u{49}\u{49}\u{0069}\u{69}\u{69}\u{006C}\u{6C}\u{069}\u{49}\u{69}\u{69}\u{6C}\u{49}\u{0049}\u{69}\u{06C}\u{069}\u{06C}\u{6C}\u{006C}\u{069}\u{006C}\u{006C}\u{0049}\u{049}\u{6C}\u{6C}\u{06C}\u{6C}"][(271695678)+(205103574)-(476799221)]][_lIoi0ilIl1II](_10olil101I0l)if(_lIoi0ilIl1II==((85695325)+(1081097318)-(1166792640)))then _10olil101I0l[_G["\u{005F}\u{06C}\u{6C}\u{069}\u{0069}\u{006C}\u{0069}\u{69}\u{6C}\u{6C}\u{69}\u{6C}\u{069}\u{049}\u{49}\u{6C}\u{49}\u{6C}\u{49}\u{049}\u{049}\u{6C}\u{0049}\u{0049}\u{6C}\u{0069}\u{0069}\u{49}\u{0069}\u{49}\u{069}\u{069}\u{006C}\u{49}\u{006C}\u{49}\u{069}"]["\u{069}\u{6C}\u{6C}\u{6C}\u{006C}\u{69}\u{0049}\u{69}\u{049}\u{49}\u{69}\u{0069}\u{69}\u{6C}\u{6C}\u{069}\u{49}\u{69}\u{69}\u{6C}\u{0049}\u{49}\u{69}\u{6C}\u{0069}\u{006C}\u{6C}\u{006C}\u{069}\u{6C}\u{6C}\u{0049}\u{049}\u{006C}\u{006C}\u{6C}\u{6C}"][(1146745480)+(1832623860)-(2979369308)]]=((369384419)+(126165011)-(495549430))end if(_lIoi0ilIl1II==((1021687981)+(695410795)-(1717098766)))then end end)(__a0,__a1);end,}
end
This is the partial script of the chunk.
You may notice it already. Scripts called chunk are the mapping functions that map the keys to the actual keys.
1
2
3
return function ()
return {[1]=function(__a0,__a1)local ukKKkuuKik=1908073259;ukKKkuuKik-=704505391;return (function(_oi0l1loioIil,_1Iiolo1I10II)return _1Iiolo1I10II//(10000)==(109)end)(__a0,__a1);end,[2]=function(__a0,__a1)local lKKluikuuk=1033172464;lKKluikuuk|=634838668;return (function(_o01ilio0oI0i,_l10IiIl1lo11)return _o01ilio0oI0i[_G["_IiIllIiiIllIiilllillIIiiIIIiIIiiilli"]["IIIIIllliIIiiIIlIlllIIlllliiliil"][5]](_o01ilio0oI0i,_l10IiIl1lo11)~=(0)end)(__a0,__a1);end,[3]=function(__a0,__a1)local KKKiKiiukk=2091496321;KKKiKiiukk|=473455857;(function(_10olil101I0l,_lIoi0ilIl1II)_G[_G["_IlIiIiIiiIlIiIIilIliIilliiliillil"]["iiIIlIIIIlIlIilIllIillIlIIIIlIiiII"][9]][_G["_lliiliilliliIIlIlIIIlIIliiIiIiilIlIi"]["illlliIiIIiiilliIiilIIililllillIIllll"][31]][_lIoi0ilIl1II](_10olil101I0l)if(_lIoi0ilIl1II==(3))then _10olil101I0l[_G["_lliiliilliliIIlIlIIIlIIliiIiIiilIlIi"]["illlliIiIIiiilliIiilIIililllillIIllll"][32]]=(0)end if(_lIoi0ilIl1II==(10))then end end)(__a0,__a1);end,[4]=function(__a0,__a1)local KKkKKuulkk=1659166981;KKkKKuulkk|=206357743;return (function(_o10IiIo1ol1I,_1ioI0I1i1lii)local _i10IlIi1io1l=_G[_G["_liliIiiiillliIIlilililIIilIIllil"]["lIliiiIiIlliilIilIiIlIiIiilllIIiIiiliI"][2]][_G["_IlliiiilillliiilIilIlillliIiIIiii"]["iilIiIliiIlllIiIliliIiIIIliliilIiiilI"][1]](_G[_G["_liliIiiiillliIIlilililIIilIIllil"]["lIliiiIiIlliilIilIiIlIiIiilllIIiIiiliI"][2]],_G["_IlliiiilillliiilIilIlillliIiIIiii"]["iilIiIliiIlllIiIliliIiIIIliliilIiiilI"][2])local _Ii10o0IiIliI=_G[_G["_liliIiiiillliIIlilililIIilIIllil"]["lIliiiIiIlliilIilIiIlIiIiilllIIiIiiliI"][3]][_G["_IlliiiilillliiilIilIlillliIiIIiii"]["iilIiIliiIlllIiIliliIiIIIliliilIiiilI"][3]](_G["_IlliiiilillliiilIilIlillliIiIIiii"]["iilIiIliiIlllIiIliliIiIIIliliilIiiilI"][4],}
end
This is the partial script of the chunk. As you can see, the chunk returns a table that maps the keys to the actual keys.
Your question might be “How can you know that the chunk is the mapping function?”
1
2
3
return function (self)
_G["_lIiIIIIIIiilililIiilIlllIIIIliiIll"]["iiIilIillIIIilillllllIlliIlIIIIiII"][1](self)
end
1
2
3
return function (self,pool,entity)
_G["_lIiIIIIIIiilililIiilIlllIIIIliiIll"]["iiIilIillIIIilillllllIlliIlIIIIiII"][2](self,pool,entity)
end
1
2
3
return function (self)
_G["_lIiIIIIIIiilililIiilIlllIIIIliiIll"]["iiIilIillIIIilillllllIlliIlIIIIiII"][3](self)
end
You might notice that they have the same table which is _G["_lIiIIIIIIiilililIiilIlllIIIIliiIll"]["iiIilIillIIIilillllllIlliIlIIIIiII"] but different key [1], [2], [3].
This is the important. It means which can create an assumption that the chunk is the mapping function.

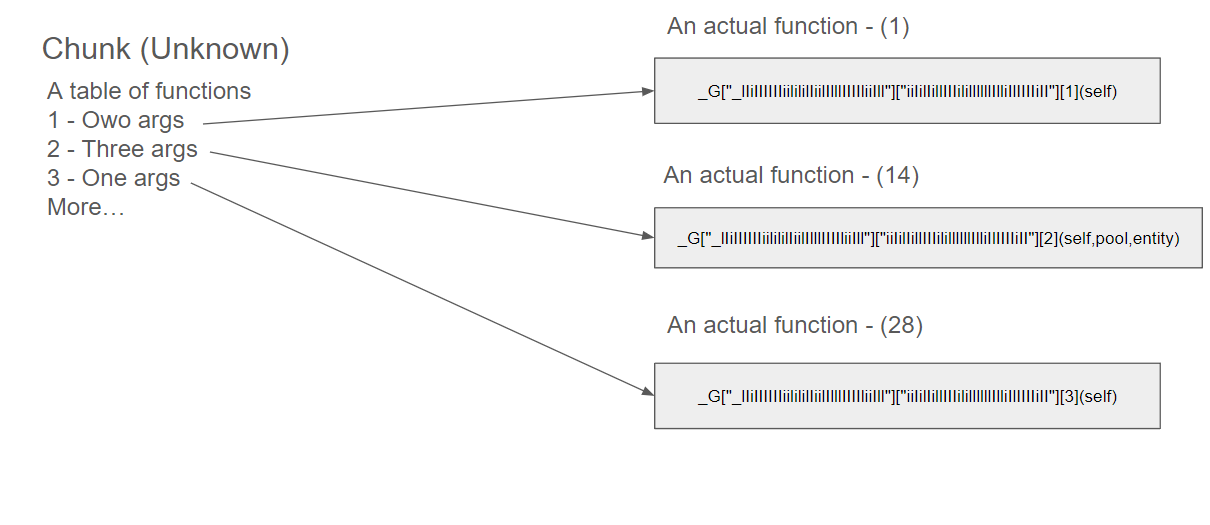

In order words, a chunk returns a table of functions which 1st function has only one argument, 2nd function has three arguments, and 3rd function has only one argument.
Basically, the chunk is the mapping function that maps the keys to the actual keys.
Matching the Keys
Since we have an access to the Lua environment, we can execute the chunk script and get the mapping functions.
What I did were extracted all tables of keys which are returned by the chunk script and executed the chunk script.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
import re
import glob
# Compile regex pattern for matching global table references
pattern = re.compile(r'_G\["_(\w+)"\]\["(\w+)"\]\[(\d+)\]')
# Initialize a dictionary to keep track of unique tables and their highest index
unique_tables = {}
# Iterate over all lua files in the "results_chunks" folder
for file_path in glob.glob(f'Decoded/*.lua'):
# if the file name does not contain "chunk" then continue
# This is because other files contain table of functions and not the actual data
if "chunk" not in file_path:
continue
with open(file_path, 'r', encoding='utf-8') as file:
content = file.read()
matches = pattern.finditer(content)
for match in matches:
# Extract table name, sub-table name, and index
table_name, sub_table_name, index = match.groups()
full_table_name = f'["_{table_name}"]["{sub_table_name}"]'
# Convert index to integer for comparison
index = int(index)
# Update the dictionary with the highest index found for each unique table
if full_table_name not in unique_tables or index > unique_tables[full_table_name]:
unique_tables[full_table_name] = index
# Convert the results to a more readable format and sort by table name
sorted_unique_tables = sorted(unique_tables.items(), key=lambda x: x[0])
luaTable = "tables = {"
for table_name, highest_index in sorted_unique_tables:
luaTable += "{"
luaTable += f"['_G{table_name}'] = _G{table_name}"
luaTable += "},"
luaTable += "}"
luaTable will have the Lua table that contains the all the keys with the table name.
1
2
_G["_IIIIiiiIlililIiIllIilliiIiiillIIliIlli"]["lliIillIIIllllilIliIIiIiIiiIlIIliIi"]':{1:"ClearAnimationTimer",2:"DisableTweenFloating",3:"Entity",4:"TransformComponent",5:"WorldPosition",6:"Position",7:"Clone",8:"SpriteEntity",9:"ZRotation",10:"SpriteRendererComponent",11:"Color",12:"MakeTween",13:"Linear",14:"a",15:"AutoDestroy",16:"SetOnEndCallback",17:"OnDestroyDrop",18:"Play",19:"isvalid",20:"_InputService",21:"Vector2",22:"_UILogic",23:"ReadBits",24:"DecompressStoreBlock",25:"DecompressFixBlock",26:"DecompressDynamicBlock",27:"result_buffer",28:"concat",29:"buffer",30:"",31:"buffer_size",32:"EffectDisplayerComponent"},
_G["_IIIIiiiliIliillIlllIiIlIIIIIilill"]["IIiiiIIiIliillililIliIlIlIilIill"]':{1:"MessageIndex",2:"Messages",3:"GetMessageByPath",4:"format",5:"%d/stop/%d",6:"QuestState",7:"answer",8:"Ask",9:"Stop",10:"SendMessage",11:"_UserService",12:"_AppService",13:"isvalid",14:"_DragDropLogic",15:"_TooltipType",16:"Entity",17:"Parent",18:"ControlTabComponent",19:"SetFocus",20:"_DataService"},
This is the partial result of the Lua table.
This the actual data that is mapped by the chunk script.
Now, we have all the nessaary information to deobfuscate the script.
We know what the keys are and we know how to access the keys.
Deobfuscation
By using the previous information, we can deobfuscate the inside of each function.
Before Decryption

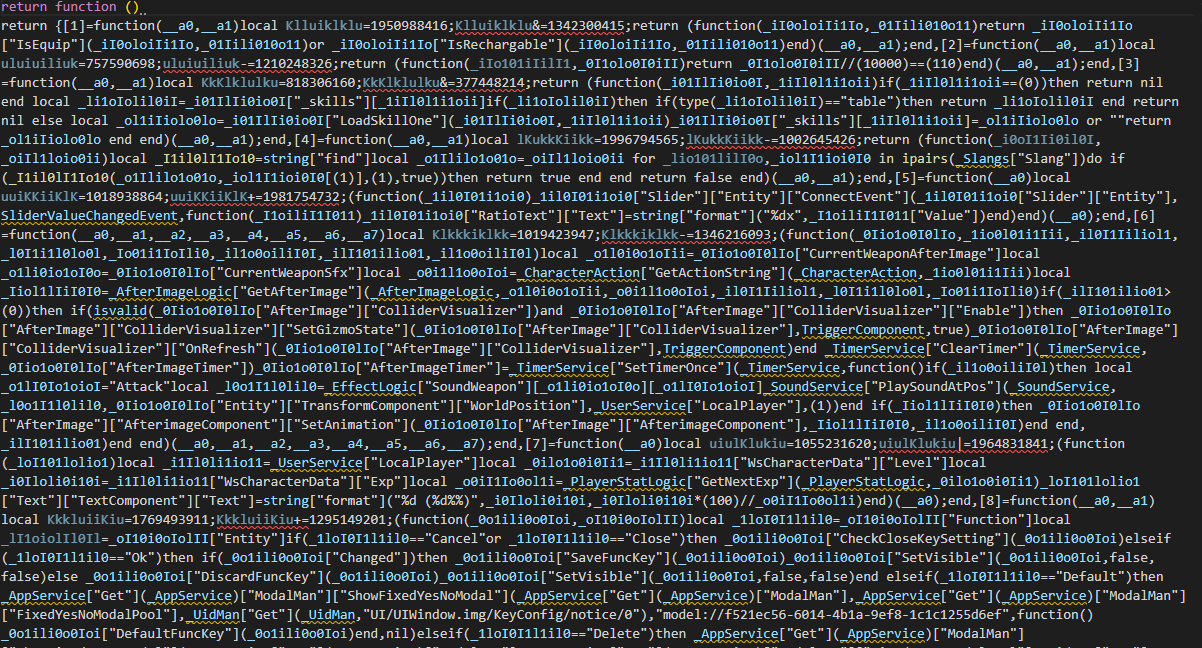

After Decryption
What I did was to replace the encrypted keys such as ["_ililIIIlIiillIlIlllIlIllIlliIiii"]["IIlilIIIIllliIilIIiilIIlliIIiIIiil"][3] to actual keys such as ["Entity"]["Parent"].
Now, we can match up encrypted scripts by using the number of arguments and unique keys.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
import os
import re
def find_functions_in_file(file_path):
"""Finds functions and their arguments in a Lua file."""
with open(file_path, 'r', encoding='utf-8') as file:
content = file.read()
return re.findall(r'\[(\d+)\]=function\((.*?)\)', content)
def find_functions_in_files(directory):
"""Finds functions and their arguments in all Lua files within the given directory."""
functions_in_files = {}
for root, dirs, files in os.walk(directory):
for file in files:
if file.endswith('.lua'):
file_path = os.path.join(root, file)
with open(file_path, 'r', encoding='utf-8') as lua_file:
content = lua_file.read()
functions = re.findall(r'\[(\d+)\]=function\((.*?)\)', content)
if functions:
functions_in_files[os.path.basename(file_path)] = functions
return functions_in_files
def find_global_table_function_calls(file_path):
"""Finds global table function calls within a Lua file."""
pattern = re.compile(r'_G\["([^"]+?)"\]\["([^"]+?)"\]\[(\d+)\]\((.*?)\)')
with open(file_path, 'r', encoding='utf-8') as file:
content = file.read()
return pattern.findall(content)
def categorize_by_global_table(files):
"""
Categorizes the given files by the global table they use.
Returns a dictionary where each key is a global table and its value is a list of tuples (filename, function index, arguments).
"""
global_table_usage = {}
global_call_pattern = re.compile(r'_G\["([^"]+?)"\]\["([^"]+?)"\]\[(\d+)\]\((.*?)\)')
for file_path in files:
with open(file_path, 'r', encoding='utf-8') as file:
content = file.read()
matches = global_call_pattern.findall(content)
for match in matches:
table_name, sub_table, func_index, args = match
key = f'{table_name}.{sub_table}'
if key not in global_table_usage:
global_table_usage[key] = []
global_table_usage[key].append((file_path.split('/')[-1], func_index, args))
return global_table_usage
# Function to extract and return all function bodies from the Lua file content
def extract_functions_from_lua(lua_content):
# This regex pattern is designed to match function bodies in the Lua content.
# It looks for patterns starting with '[number]=function' and captures until the corresponding 'end' keyword.
# Due to the complexity and variations in Lua syntax, this pattern might not capture all nuances perfectly.
pattern = re.compile(r'\[(\d+)\]=function\((.*?)\)(.*?)(?=\(__a\d+(?:,__a\d+)*\);end)', re.DOTALL)
functions = pattern.findall(lua_content)
return functions
# Function to read and return the contents of a specified file within the "results_chunks" folder
def read_file_content(folderPath, file_name):
file_path = os.path.join(folderPath, file_name)
if os.path.exists(file_path):
with open(file_path, 'r', encoding='utf-8') as file:
return file.read()
else:
return "File does not exist."
def rename_arguments(lua_function, new_argument_names):
# Split the Lua function into lines
lines = lua_function.split('\n')
# Regex pattern to match Lua function arguments
arg_pattern = re.compile(r'\bfunction\b\s*\((.*?)\)\s*')
# Find the arguments in the Lua function
match = arg_pattern.search(lines[0])
if match:
old_arguments = match.group(1).split(',')
else:
return "Function arguments not found"
# Check if the number of old and new arguments match
if len(old_arguments) != len(new_argument_names):
return "Number of new argument names does not match the number of old arguments"
# Rename the arguments in the Lua function
new_lines = []
for line in lines:
for old_arg, new_arg in zip(old_arguments, new_argument_names):
line = re.sub(r'\b' + re.escape(old_arg.strip()) + r'\b', new_arg.strip(), line)
new_lines.append(line)
return '\n'.join(new_lines)
def rename_locals(lua_function):
# Split the Lua function into lines
lines = lua_function.split('\n')
# Regex pattern to match local variable declarations
local_pattern = re.compile(r'\blocal\b\s*(\w+)\s*')
# Counter for generating unique local variable names
local_counter = 1
# Rename local variables in the Lua function
new_lines = []
for line in lines:
match = local_pattern.search(line)
if match:
old_local = match.group(1)
new_local = f'local_{local_counter}'
line = re.sub(r'\b' + re.escape(old_local) + r'\b', new_local, line)
local_counter += 1
new_lines.append(line)
return '\n'.join(new_lines)
# Compile regex pattern for matching global table references
localValPattern = re.compile(r'local\s+(_\w+)(?:\s*=\s*\w+)?(?:\s*,\s*(_\w+)(?:\s*=\s*\w+)?)*')
# Compile regex pattern for matching function declarations with arguments
# functionPattern = re.compile(r'function\s+(_\w+)\s*\(([_\w\s,]*)\)')
functionPattern = re.compile(r'(?:function\s+(_\w+)\s*\(([_\w\s,]*)\))|(?:function\s*\(([_\w\s,]*)\))')
# Compile regex pattern for matching for loop declarations with initial values
forLoopPattern = re.compile(r'for\s+(_\w+(?:,\s*_\w+)*)\s*')
def match_chunk_to_results(chunk_signatures, global_table_usage):
"""
Matches chunk file function signatures to result file global function calls.
chunk_signatures: List of tuples representing function signatures from the chunk file (n-th number, argument count).
global_table_usage: Dict mapping global table calls from result files, including file name, n-th number, and arguments.
"""
matched_results = {}
for global_table, usages in list(global_table_usage.items()):
usages = sorted(usages, key=lambda x: int(x[1]))
counter = 0
for usage in usages:
result_file, result_nth, result_args = usage
for chunk_name, chunk_data in chunk_signatures.items():
missMatched = False
# if number of function in chunk file is equal to number of function in result file
# Edit: Actually according to chunk1582, this is not always the case
for chunk_nth, chunk_args in chunk_data:
if str(chunk_nth) == result_nth:
chunk_args_count = len(chunk_args.split(',')) if chunk_args else 0
result_args_count = len(result_args.split(',')) if result_args else 0
if chunk_args_count == result_args_count:
counter += 1
else:
missMatched = True
else:
missMatched = True
if (counter != 0 and len(usages) == counter):
# add chunk_name, global_table, usages to matched_results
matched_results[chunk_name] = (global_table, usages)
return matched_results
# Example usage:
if __name__ == "__main__":
functions_in_chunks = find_functions_in_files('Mappings')
# Find Lua files in "results" folder
results_lua_files = [os.path.join(root, file) for root, dirs, files in os.walk('./Decoded/') for file in files if file.endswith('.lua') if not "chunk" in file]
# Now you can proceed to categorize by global table usage
global_table_usage = categorize_by_global_table(results_lua_files) # Limiting for demonstration
# Define the path to the "updated" folder
folder_path = "Mappings"
updated_funcs = []
# Iterate over all files in the "updated" folder
for file_name in os.listdir(folder_path):
if file_name.endswith(".lua"): # Consider only Lua files
file_content = read_file_content(folder_path, file_name)
extracted_functions = extract_functions_from_lua(file_content)
# print(f"Functions extracted from {file_name}:")
print(extracted_functions)
# if extracted_functions is [] then continue
if not extracted_functions:
continue
chunk_functions = {file_name: functions_in_chunks[file_name],}
# Call the function with your data
matched_results = match_chunk_to_results(chunk_functions , global_table_usage)
fun = matched_results[file_name]
tableName, usages = fun
for usage in usages:
fileName, func_num, new_params = usage
for index, params, body in extracted_functions:
if index == func_num:
# Replace the parameters in the function definition
# Find the index of the first occurrence of "(function"
index = body.find("(function")
# If "(function" exists, add "return" before it
if index != -1:
body = "return " + body[index:]
else:
print("No '(function' found in the script.")
# split new_params by comma and remove empty strings
new_params = list(filter(None, new_params.split(',')))
local_variable_replacements = {}
function_name_replacements = {}
function_argument_replacements = {}
loop_variable_replacements = {}
matchesLocal = localValPattern.finditer(body)
for matchLocal in matchesLocal:
original_names = matchLocal.groups()
for original_name in original_names:
if original_name is not None:
if original_name not in local_variable_replacements:
local_variable_replacements[original_name] = f"local_{len(local_variable_replacements) + 1}"
body = body.replace(original_name, local_variable_replacements[original_name])
matchesFunction = functionPattern.finditer(body)
for matchFunction in matchesFunction:
function_name = matchFunction.group(1)
arguments_group1 = matchFunction.group(2)
arguments_group2 = matchFunction.group(3)
if arguments_group1:
arguments = arguments_group1.split(',')
elif arguments_group2:
arguments = arguments_group2.split(',')
else:
arguments = []
for argument in arguments:
argument = argument.strip()
if argument:
if argument not in function_argument_replacements:
function_argument_replacements[argument] = f"arg_{len(function_argument_replacements) + 1}"
body = body.replace(argument, function_argument_replacements[argument])
if function_name:
if function_name not in function_name_replacements:
function_name_replacements[function_name] = f"function_{len(function_name_replacements) + 1}"
body = body.replace(function_name, function_name_replacements[function_name])
matchesForLoop = forLoopPattern.finditer(body)
for matchForLoop in matchesForLoop:
loop_variables = matchForLoop.group(1).split(',')
for loop_variable in loop_variables:
loop_variable = loop_variable.strip()
if loop_variable not in loop_variable_replacements:
loop_variable_replacements[loop_variable] = f"loop_{len(loop_variable_replacements) + 1}"
body = body.replace(loop_variable, loop_variable_replacements[loop_variable])
# Rename arguments
body = rename_arguments(body, new_params)
updated_funcs.append((fileName, body))
# save files to a new folder of function_summaries
if not os.path.exists('FinalResults'):
os.makedirs('FinalResults')
for fileName, body in updated_funcs:
#print the file name and the body
local_variable_replacements = {}
function_name_replacements = {}
function_argument_replacements = {}
loop_variable_replacements = {}
# Write the function body to a new file
with open(os.path.join('FinalResults', fileName), 'w', encoding='utf-8') as file:
file.write(body)
# find the same key in matched_results and update the function parameters
# Function to update function parameters based on the mapping
def update_function_params(funcs, mappings):
updated_funcs = []
for fileName, variables in mappings.items():
print(f"File: {fileName}")
print(f"Variables: {variables}")
tableName, usages = variables
for usage in usages:
fileName, func_num, new_params = usage
for index, params, body in funcs:
if index == func_num:
# Find the index of the first occurrence of "(function"
index = body.find("(function")
# If "(function" exists, add "return" before it
if index != -1:
body = "return " + body[index:]
else:
print("No '(function' found in the script.")
# split new_params by comma and remove empty strings
new_params = list(filter(None, new_params.split(',')))
print(f"new_params: {new_params})")
# Rename arguments
body = rename_arguments(body, new_params)
# body = rename_locals(body)
print(body)
updated_funcs.append((fileName, body))
break
return updated_funcs
This may not be the prettiest code that you have ever seen, but it works.
Replace all the encrypted keys with the actual keys.
Find the all unique encrypted table of functions.
Match with the actaul functions by using the number of arguments and unique keys.
Replace the arguments with the actual arguments.
Replace the local variables with the new local variables (ex.
local_1,local_2, …)Save the results to the new folder.
Finally, you will get the deobfuscated scripts.
Results
1
2
3
4
5
6
7
8
9
return (function(self)
local local_1 = self["Get"](self)
local local_2 = _UserService["LocalPlayer"]
local local_3 = local_2["WsUser"]
local_1["GetStatusBar"](local_1)["Hp"]["SetValue"](local_1["GetStatusBar"](local_1)["Hp"], local_3["Health"],
local_3["MaxHealth"], _StatusBarElementTypes["Hp"])
local local_4 = local_1["ControlWindowMan"]["Stat"]["StatWindowComponent"]
local_4["Hp"]["UpdateHp"](local_4["Hp"])
end)
This is one of the deobfuscated scripts. As you can see, the encrypted keys are replaced with the actual keys.
Now, we can understand the script and analyze the script more easily without any confusion.
Conclusion
In this post, I have explained how to deobfuscate the Lua script by using the mapping functions.
The mapping functions are the functions that map the keys to the actual keys.
By using the mapping functions, we can deobfuscate the Lua script and understand the script more easily.
I hope this post helps you to understand the Lua obfuscation and its deobfuscation.
If you have any questions or suggestions, please feel free to leave a comment below.
Thank you for reading!
References
Lua Official Website, https://www.lua.org/about.html ↩
